AV over IP vast.otin Wyrestorm H.264 multiview, myyntierä 1 kpl

2 693,90 € 2 172,50 €
Tilaustuote, toimitusaika n.5 työpäivää

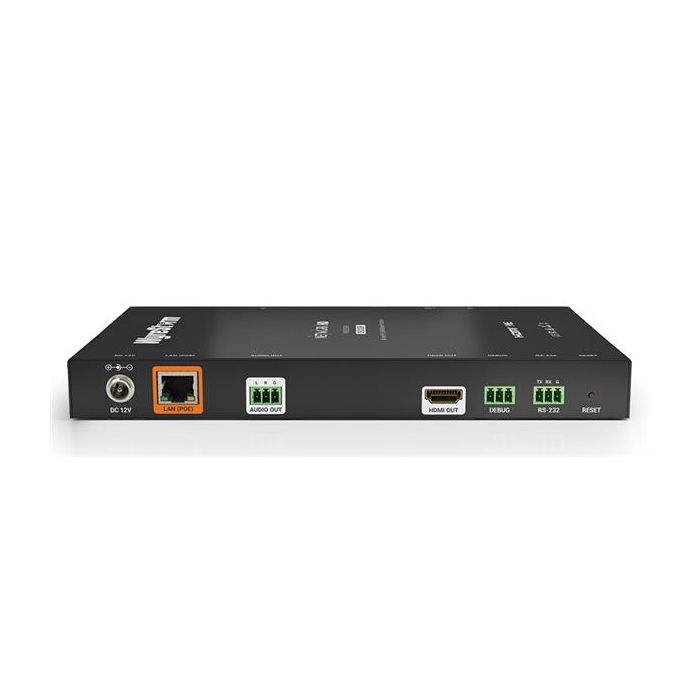

The NHD-250-RX is an enhanced multiview display decoder compatible with the NetworkHD™ 100 and 200 Series, an ultra low bandwidth H.264 AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. Capable of displaying up to 9 simultaneous video feeds on a single display in tile mode and up to 6 inputs in overlay mode, users can select configurable layouts using grid style or layered modes.

The NHD-250-RX H.264 decoder is intended for use with 100 or 200 Series H.264 encoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-000-CTL system controller complete control integration is simple.

Key Features:
• Multiview capable of displaying 1 to 9 simultaneous NetworkHD 2K encoder streams on a single 4K display
• Up to 6 simultaneous NetworkHD 2K encoder streams on a single 2K display in overlay mode
• Ideal for commercial monitoring of remote displays within a venue from a central location to quickly verify content transmitted to screens
• Multiple configurable layouts including hybrid grid layouts, PiP, PaP, arbirary layouts and preset multiscreen arrangements
• Graphic or logo can be inserted into central image placeholder for screen indication or additional branding
• Configurable resolution output scaling, timing and mode
• Instant switching with WyreStorm QuickSync™
• RS-232 with integration with leading 3rd party control systems, including WyreStorm Enado and the NetworkHD Touch app
CEC control of connected displays
• Analogue audio breakout
• Configurable source audio switching
• Multiple NHD-250-RX units can be combined to suit the monitoring needs of the project
• Dramatically reduces the number of components required to monitor a venue – less decoders and screens – for reduced project complexity and less potential points of failure within installations
• Also provides video wall-like functionality on large screens or multiple screens combined with different layouts for custom display configurations
• Backwards compatible – able to be added to any existing NetworkHD 100/200 Series system
IEEE 802.3af PoE compliant PD
• Includes DC power adapter and mounting bracket
• Compatible with NHD-000-RACK4 rack mounting kit
